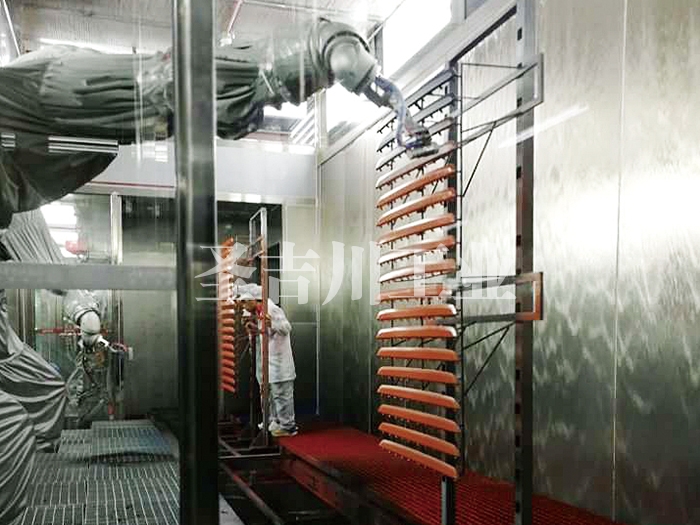

1. Traction chain: Since the line of the suspension conveyor system is a spatial line, the traction chain is required to have good flexibility in both the horizontal and vertical directions. Conveyors in paint shop often use traction chains, two detachable chains and double hinged chains with a pitch of 100mm and 160mm. The head of the inner ring of the detachable chain is made into a round prismatic shape to increase the corner and reduce the vertical bending radius. The detachable chain is generally used for small vehicles with heavy weight such as 5000N, 10000N suspended conveyors, etc.

2. Sliding frame: The basic form of sliding frame with detachable chain, as shown in Figure 4. The sliding frame is used to support the spreader of the goods and make it run along the overhead track, or to support the quality of the chain to avoid excessive deflection of the chain. The former is called the load-carrying carriage, and the latter is called the no-load Sliding frame. The rollers of the carriage are made of integral bearing type, there are two kinds of closed type and open type. When the suspension conveying system needs to pass through the high temperature drying room, the open roller is generally used. The carriage of the double hinge chain is generally made together with the chain. to make.

3. Overhead track: The lines of the suspension conveyor system are all single-line lines. The overhead track of the detachable chain can be made of 10-16 I-beam, depending on the load. It is made of special box-shaped section steel. The overhead track can be fixed and connected to the roof truss, wall or pillar. In order to eliminate the concave shape of the carriage at the vertical bend of the line, the lifting phenomenon caused by the tension of the traction member should be equipped with a guiding anti-rail device.

4. Slewing device: The steering of the suspension conveyor system in the horizontal plane is realized by steering sprocket, grooved smooth wheel or roller set. The principle of selection depends on the form of the traction member, as well as the tension of the traction chain and the turning radius.

5. Tensioning device: The tensioning device is a device used to change the tension of the suspension conveyor due to the wear of the chain and the elongation of the chain length caused by thermal expansion and contraction when the temperature rises. Commonly used tensioning devices are There are three types of hammer type, spring type and pneumatic hydraulic type. The tensioning device is generally set on a transport section with low tension or close to tension. It is usually placed on a curved section not far behind the drive unit.

6. Driving device: When the length of the line does not exceed 500m, generally only one driving device is placed. When the line is very long or more complicated, it is necessary to place multiple driving devices. There are two types of driving devices: angular drive device and crawler drive device. . The angular drive device is installed at the 90° turning point on the conveying line, and transmits traction through the engagement of the drive sprocket and the traction chain. The crawler driving device is installed on the straight end of the conveying line, and the traction force is transmitted by the engagement of the protruding head 4 on the crawler chain of the driving device and the traction chain.
